tactileModular

tactilemodul>

Part of synthaccess

ABILITY Project / Integrated Design & Media
NYU

Files:

• README.md - this file
• Serge - 3D files for the Serge modular system

Resources for tactile affordances specific to modular synthesizers.

Serge

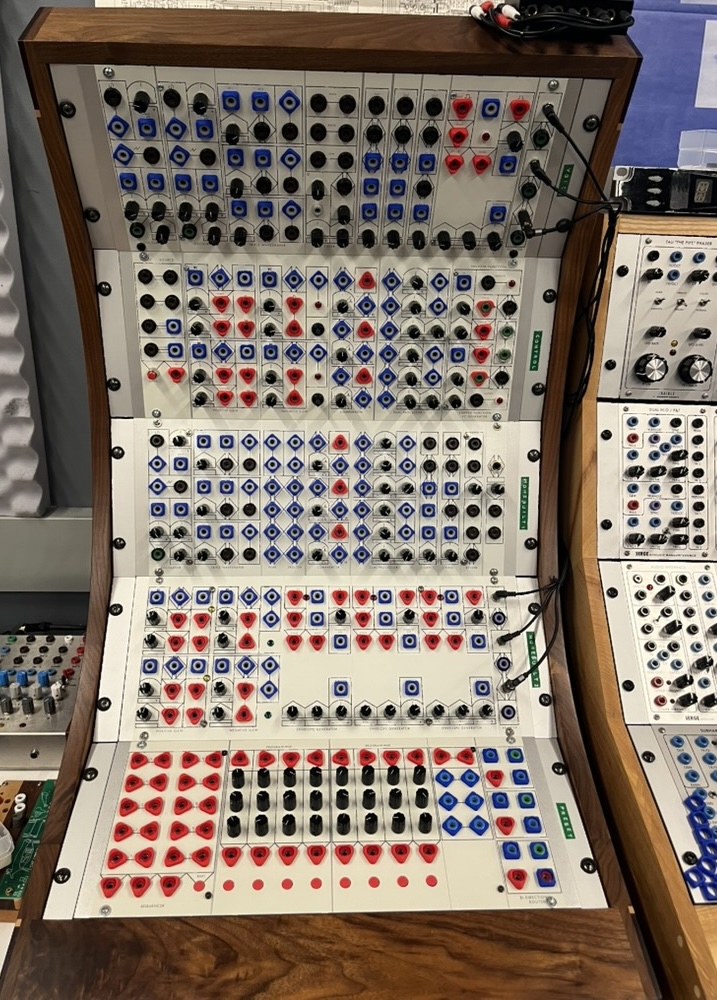

The Serge folder contains a collection of Serge modular jack collars and knob designs by Jason Wallach to allow for tactile sensing of the different affordances on Serge Modular (and related “4U” banana-jack modular) equipment. The repository contains both STL and STEP files that can be used with most 3D printers.

• In our mapping, AC signal jacks have circular collars, DC signal jacks have square collars, and Pulse jacks have triangular collars. Miscellaneous jacks (such as the coupler output on an SSG module) have hexagonal collars.
• The output jacks are flat and should fit flush onto the standard Pomona jacks used on most Serge and other 4U synthesizers.
• The input jacks are deeper and have rounded “calderas”; in addition to providing a tactile distinction from the output jacks, they (lightly) disincentivize the stacking of banana cables at inputs.

Jack Type	Color	Image	Render	STL file	STEP file

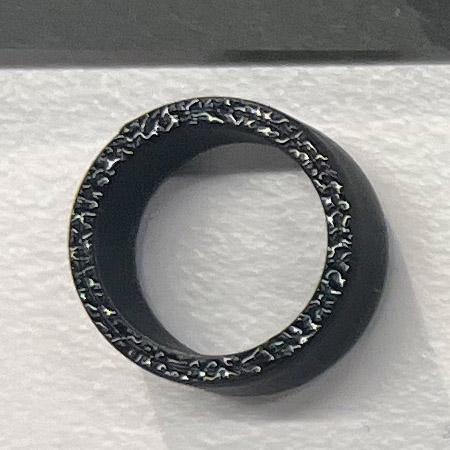

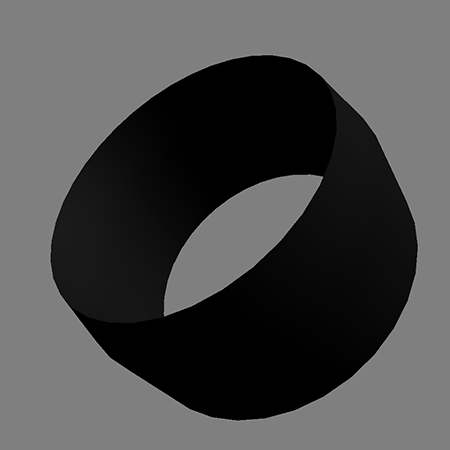

AC Input	Black/Brown			AC_InCircle.stl	AC_InCircle.step

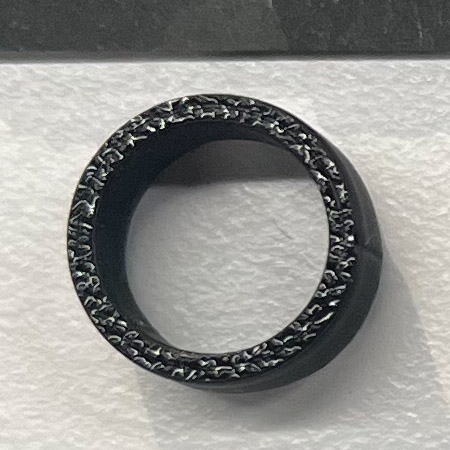

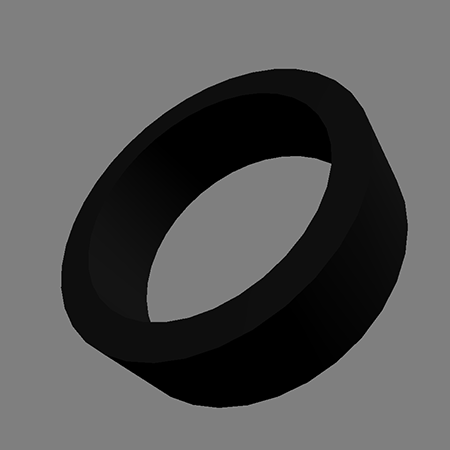

AC Output	Black/Brown			AC_OutCircle.stl	AC_OutCircle.step

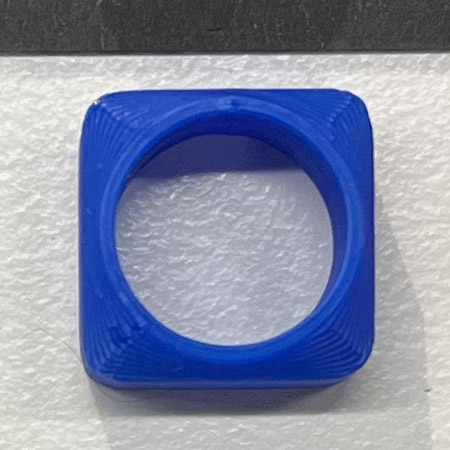

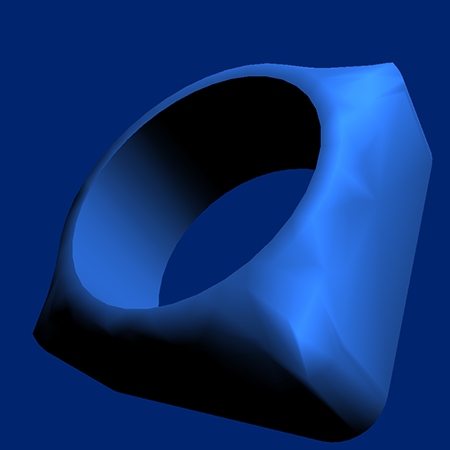

DC Input	Blue/Grey			DC_InSquare.stl	DC_InSquare.step

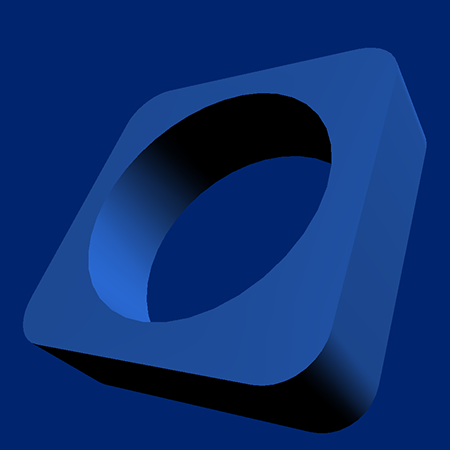

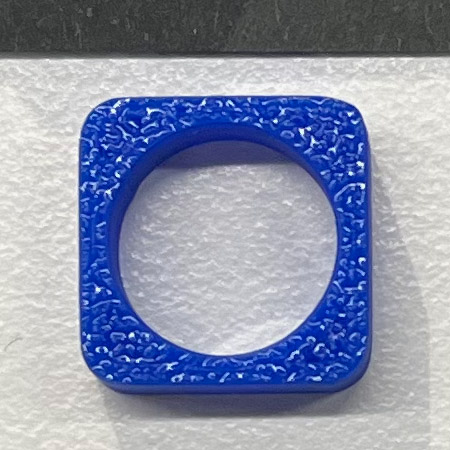

DC Output	Blue/Grey			DC_OutSquare.stl	DC_OutSquare.step

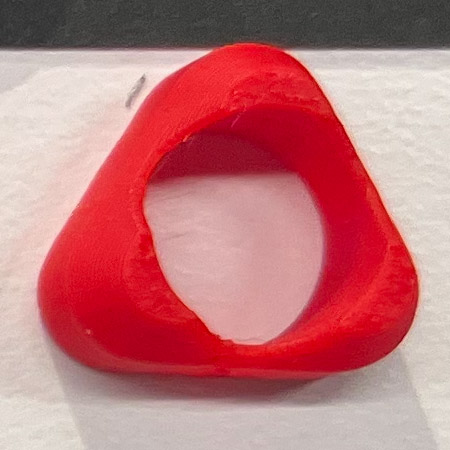

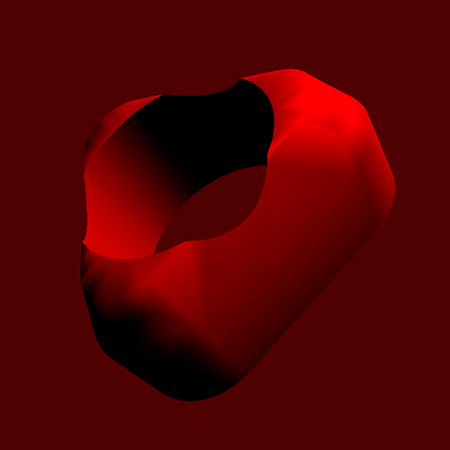

Pulse Input	Red			DC_InSquare.stl	DC_InSquare.step

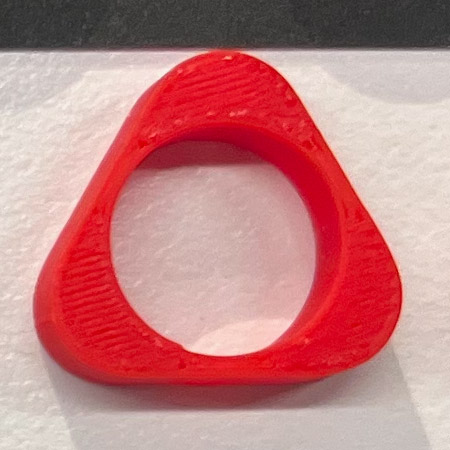

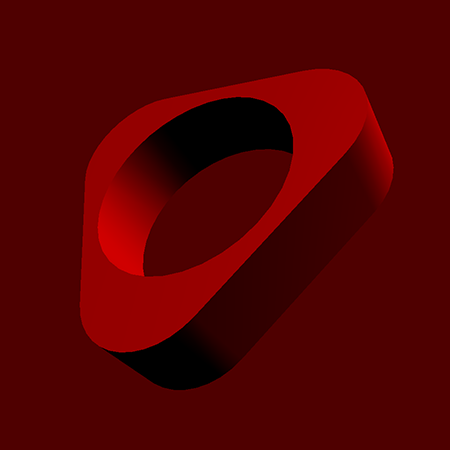

Pulse Output	Red			DC_OutSquare.stl	DC_OutSquare.step

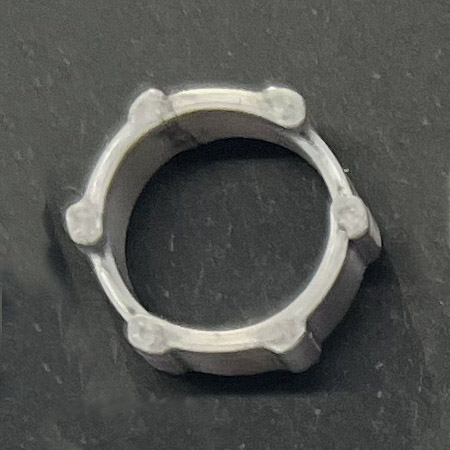

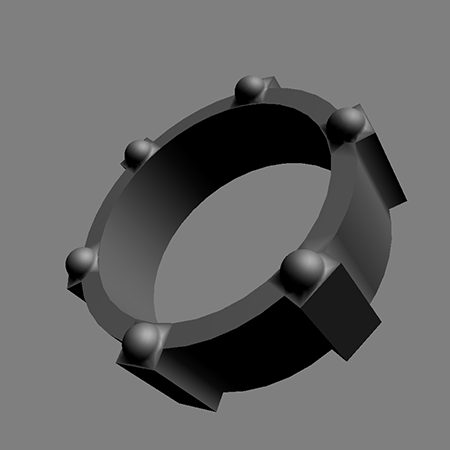

Misc Input	Various			misc_InHexagon.stl	misc_InHexagon.step

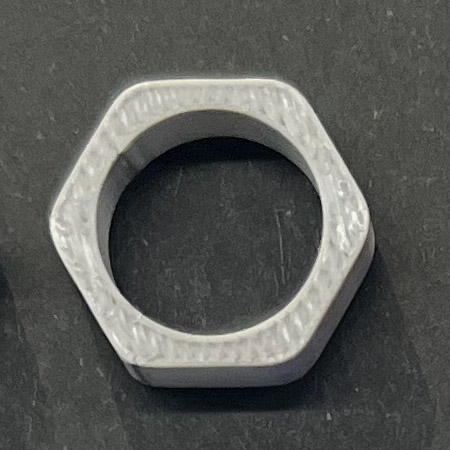

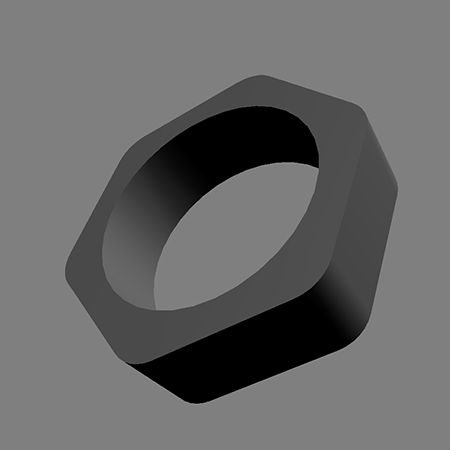

Misc Output	Various			misc_OutHexagon.stl	misc_OutHexagon.step
